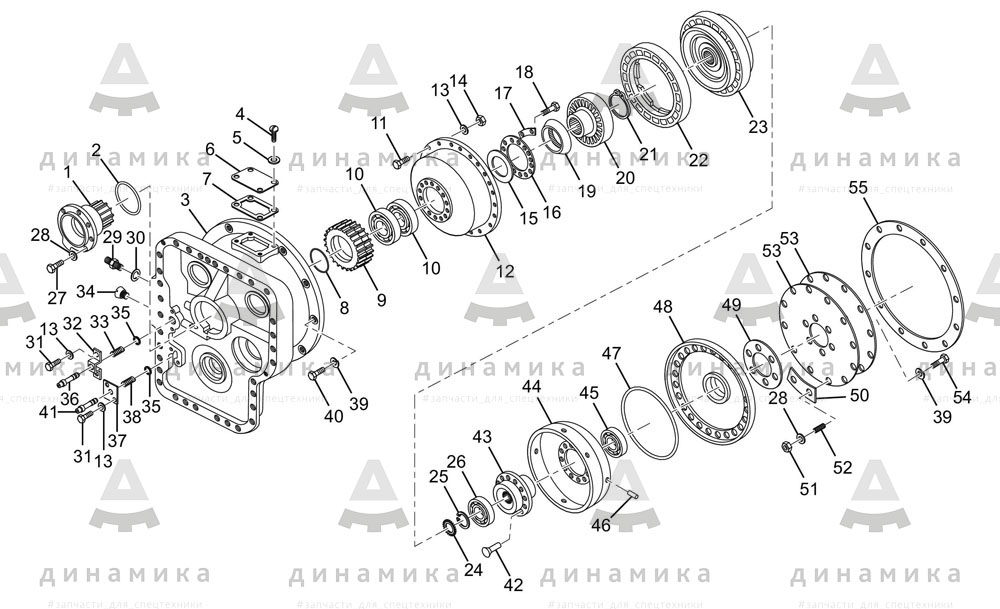

| № | Наименование | Артикул | Комплект | Внешний вид | Заказать |
| 1 | Idle wheel seat | 402222 | 1 | ||
| 2 | Seal ring | GB1235.1-82 | 2 | ||
| 3 | Torque converter body | 402216A | 1 | ||
| 4 | Half round screw M6x16 | GB67-85 | 4 | ||
| 5 | Washer 6 | GB93-87 | 4 | ||
| 6 | Access cover | 402214 | 1 | ||
| 7 | Paper gasket | 402215 | 1 | ||
| 8 | Seal ring | 402221 | 1 | ||
| 9 | Gear | 402220 | 1 | ||
| 10 | Bearing 117 | GB276-89 | 2 | ||
| 11 | Bolt М8х35 | GB5782-86 | 24 | ||
| 12 | Pump wheel | 402227 | 1 | ||
| 14 | Nut М8 | GB6170-86 | 24 | ||
| 15 | Adjusting shim | 402224 | 1 | ||
| 16 | Press plate | 402226 | 1 | ||
| 17 | Check gasket | 402218 | 6 | ||
| 18 | Bolt М8х30 | GB5783-86 | 14 | ||
| 19 | Oil guide ring | 402225 | 1 | ||
| 20 | Idle wheel | 402217 | 1 | ||
| 21 | Sprag 80 | GB894.1-86 | 1 | ||
| 22 | First stage turbine | 402209 | 1 | ||
| 23 | Second stage turbine | 402212-213 | 1 | ||
| 24 | Spline adjusting shim | 402238 | 1 | ||
| 25 | Sprag 50 | GB893.1-86 | 1 | ||
| 29 | Pipe connector | 402111A | 2 | ||
| 30 | Washer | 402106 | 2 | ||
| 32 | Valve cover | 402228A | 1 | ||
| 33 | Spring I | 402229 | 1 | ||
| 34 | Plug screw | 402223 | 1 | ||
| 35 | Gasket | 402232 | 2 | ||
| 36 | Inlet valve spool | 402233 | 2 | ||
| 37 | Tie plate | 402230 | 1 | ||
| 38 | Spring II | 402231 | 1 | ||
| 41 | Outlet valve spool | 402234 | 1 | ||
| 42 | Countersunk head rivet 8х16 | GB869-86 | 12 | ||
| 43 | First stage turbine hub | 402206 | 1 | ||
| 44 | First stage turbine hood | 402207 | 1 | ||
| 46 | Spring pin | 402208 | 9 | ||
| 47 | O-ring | 402236 | 1 | ||
| 48 | Hood wheel | 402203 | 1 | ||
| 49 | Round tie plate | 402210 | 1 | ||
| 50 | Gasket | 402201 | 6 | ||
| 51 | Nut M10x1 | GB6171-86 | 12 | ||
| 52 | Stud AM10x18 | GB898-86 | 12 | ||
| 53 | Spring plate 5=1.0 | 4022042 | 2 | ||
| 55 | Paper gasket | 402211 | 1 |
